E34 Series LiDAR_Beijing SemiDrive Technology Corporation

Products of a Leading Domestic LiDAR Enterprise

Solution Features
- Up to 3 independent programmable 600MHz R5 cores
- 3MB large-capacity SRAM
- 3 independent 12-bit SAR ADC cores, with 48 analog channels
- 2 gigabit Ethernet ports, supporting TSN, multiple CAN-FD, SPI, and LIN
- Single 3.3V power supply or powered with SBC/PMIC

Customer Value:
- Equipped with dual gigabit Ethernet TSN modules for simultaneous connection to FPGA and intelligent driving ECU.
- Supports system functional safety design of ASIL-D level, enabling system management and safety monitoring for system reliability and safety.
- Reduces the specification selection of FPGA in the system to greatly cut down the system cost.

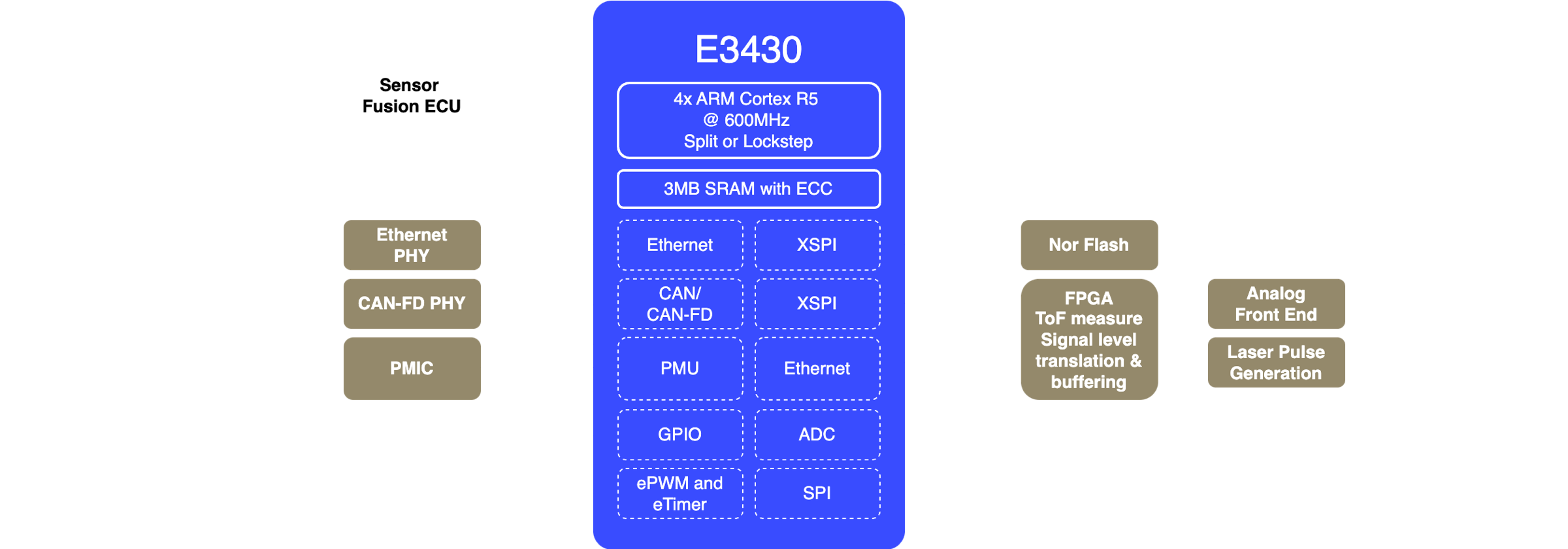

E34 Series LiDAR Diagram
