G9H
Recommended application: Central Gateway、Central computing platform
Product Features:
-Designed for central computing platform applications; Supports the integration of body domain, chassis domain, etc.

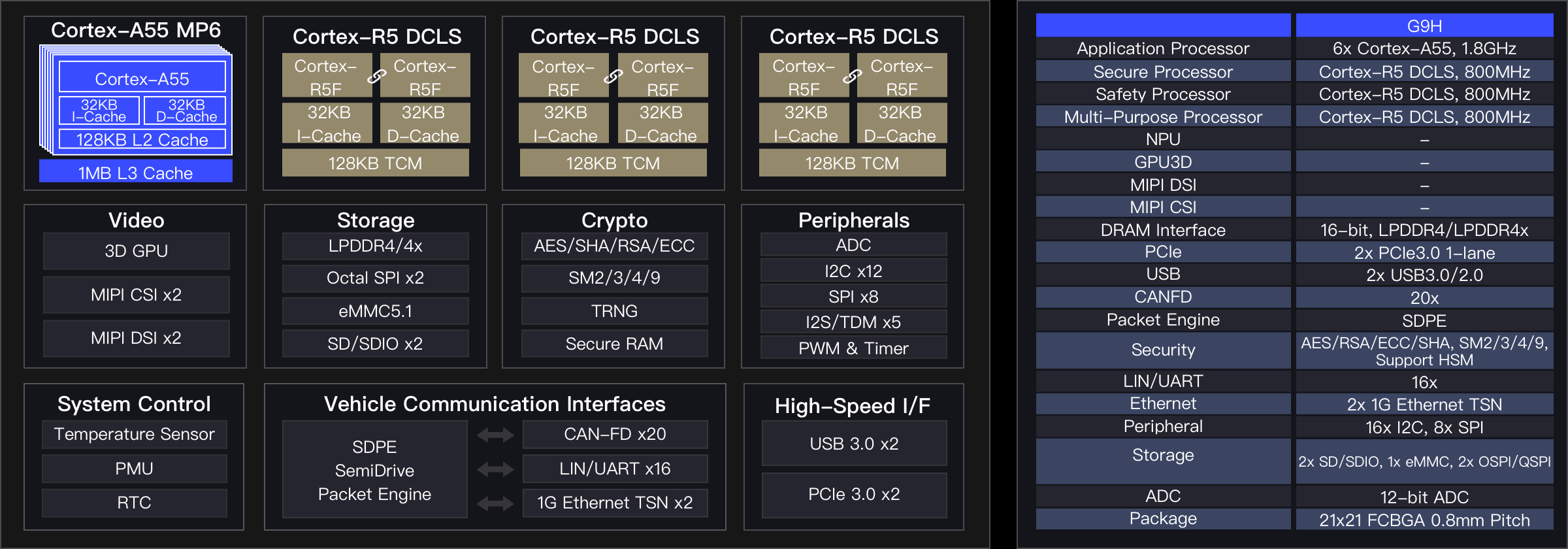

-Integrates high-performance 6-core Cortex-A55 processors and 3 pairs of lock-step Cortex-R5 processors;
-Integrates exclusive Package Engine to enable low-latency forwarding of CAN/LIN/Ethernet;
-Supports 20 CAN-FDs, 16 LINs, dual Gigabit TSN Ethernet, and expandable PCIe3.0 interfaces
- Meets the Grade 2 reliability requirements of AEC-Q100; ASIL B certification of ISO 26262 for functional safety
roduct Manual
Specification
Applications
Provides high-performance and high-security central computing platform solutions based on G9H.
Solution Features:
- Designed for central computing platform applications; Supports the integration of body domain, chassis domain, etc.
- Processing unit with high-performance 6-core Cortex-A55 processors and 3 pairs of lock-step Cortex-R5 processors;
- Adapted to operating systems and middleware such as AutoSAR, Linux, and QNX etc.
- Offers a wide range of CAN, LIN, and Ethernet interfaces.
- Built-in SemiDrive SDPE engine to facilitate low-latency data forwarding between CAN/LIN/Ethernet without occupying CPU computing resources
- Built-in independent high-performance HSM engine
- Meets the Grade 2 reliability requirements of AEC-Q100
- ASIL B certification of ISO 26262 for functional safety
Software
ToolsCompilation Toolchain
SDTOOL: A toolkit related to host computer side of SemiDrive platform product, including drivers, download tools, Fuse tools, configuration tools, etc.
SDPE Config Tool: SDPE configuration tool and routing table template
G9_UDP_Client: A PC client for CAN/LIN to Ethernet testing
Source Code
MirrorHardware
No.
Material Name
Material Description
Unit
Quantity
1
G9H development assessment board
G9H development assessment board
pcs
1
2
USB harness Type-A to Micro USB
For assessment of the board's debugging and printing function
Pcs
1
3
2m CAT6 network cable with RJ45 connectors
For network debugging of the development board
Pcs
1
4
24-pin interface harness
For special interface of the development board
Pcs
1
5
40-pin interface harness
For special interface of the development
Pcs
1
6
12V adapter
For power supply to the development board
Pcs
1
7
25X40cm electrostatic bag
For dust prevention of screen/main board
Pcs
1
8
Acrylic protective plate
For protection of devices on the main board/display screen
Set
1
9
Interior and exterior packaging
Inner lining foam and packaging carton
Set
1
