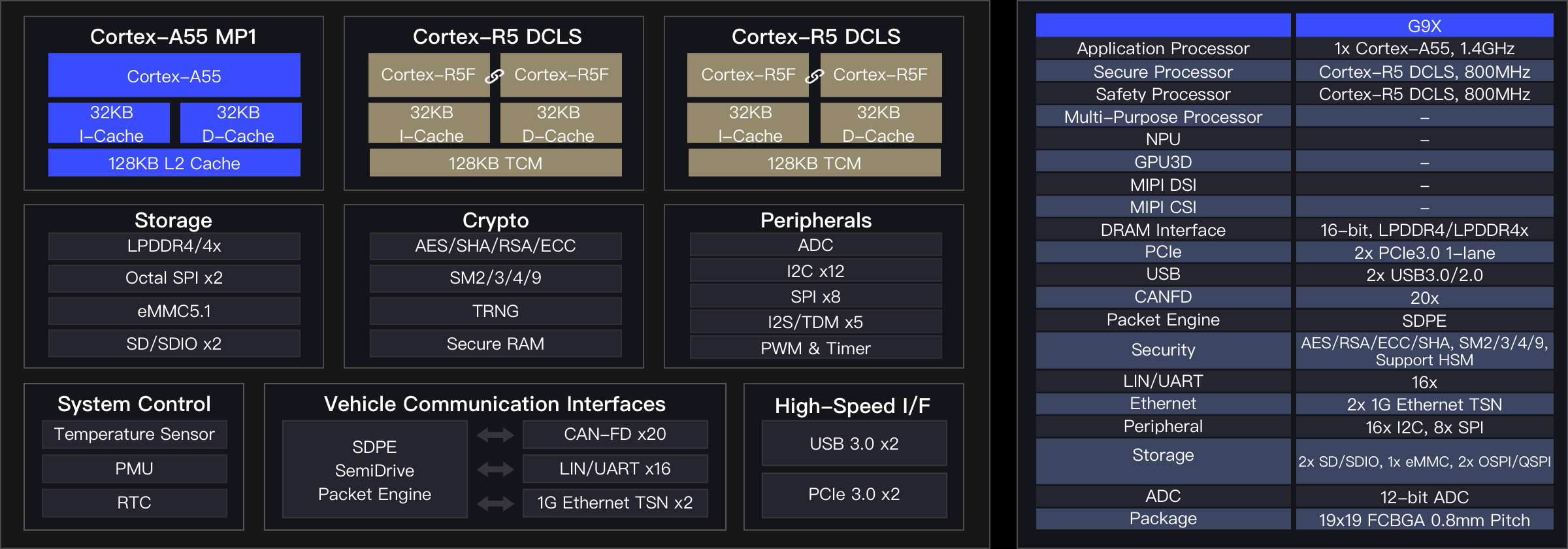

G9X
Recommended application: Central Gateway
Product Features:
-Designed for SOA central gateway applications;
-Integrates high-performance Cortex-A55 processors and multiple pairs of lock-step Cortex-R5 processors;
-Integrates exclusive Package Engine to enable low-latency forwarding of CAN/LIN/Ethernet;
-Supports 20 CAN-FDs, 16 LINs, dual Gigabit TSN Ethernet, and expandable PCIe3.0 interfaces
-Meets the Grade 2 reliability requirements of AEC-Q100; ASIL B certification of ISO 26262 for functional safety
roduct Manual
Specification
Applications

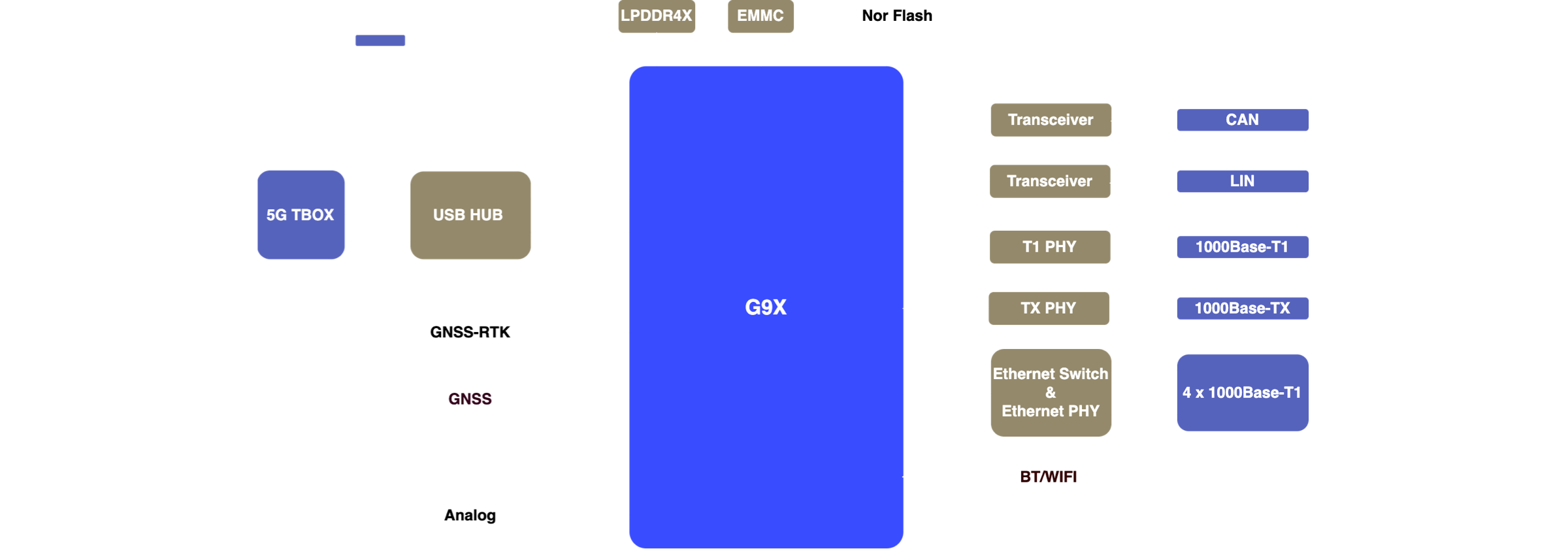

Provides high-performance and high-security central gateway solutions based on G9X
Solution Features:
- Designed for SOA central gateways.
- Built-in high-performance processing unit and real-time processing unit;
- Adapted to operating systems and middleware such as AutoSAR, Linux, and QNX etc.
- Offers a wide range of CAN, LIN, and Ethernet interfaces.
- Built-in SemiDrive SDPE engine to facilitate low-latency data forwarding between CAN/LIN/Ethernet without occupying CPU computing resources
- Built-in independent high-performance HSM engine
- Meets the Grade 2 reliability requirements of AEC-Q100
- ASIL B certification of ISO 26262 for functional safety
Software
ToolsCompilation Toolchain
SDTOOL: A toolkit related to host computer side of SemiDrive platform product, including drivers, download tools, Fuse tools, configuration tools, etc.
SDPE Config Tool: SDPE configuration tool and routing table template
G9_UDP_Client: A PC client for CAN/LIN to Ethernet testing
Source Code
Mirror
