X9SP

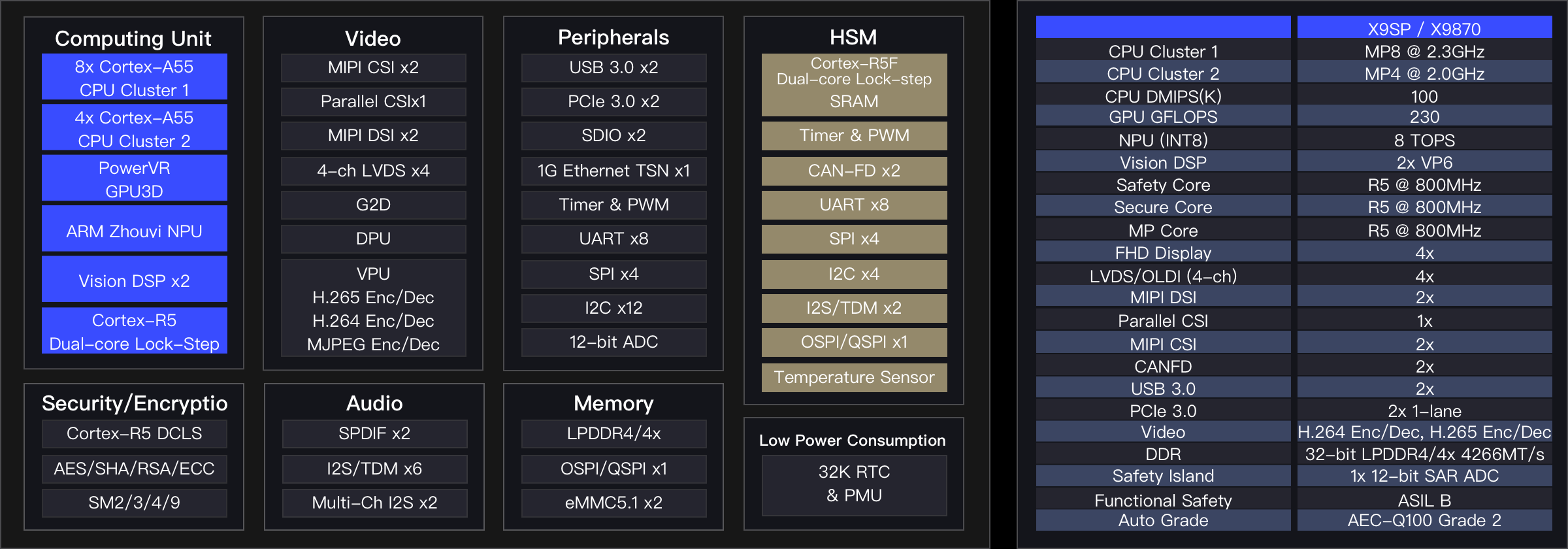

Product Features:
-
Hard isolation architecture without the need for virtualization; Supports multiple systems on a single chip to meet the safety demands of different functional domains.
- Integrates high-performance CPU, GPU, DSP, video processor, and a rich variety of in-vehicle scenario interfaces.
- Built-in high-performance NPU and automotive ISP to enable the deployment of parking algorithms.
- Built-in hardware security module (HSM); Dual-core lock-step Cortex-R5F CPU.
- Meets the Grade 2 reliability requirements of AEC-Q100; ASIL B certification of ISO 26262 for functional safety;
- Built-in independent safety island; Dual-core lock-step Cortex-R5F CPU; Diagnostic coverage in line with ASIL D functional safety requirements of ISO 26262.
Product Manual

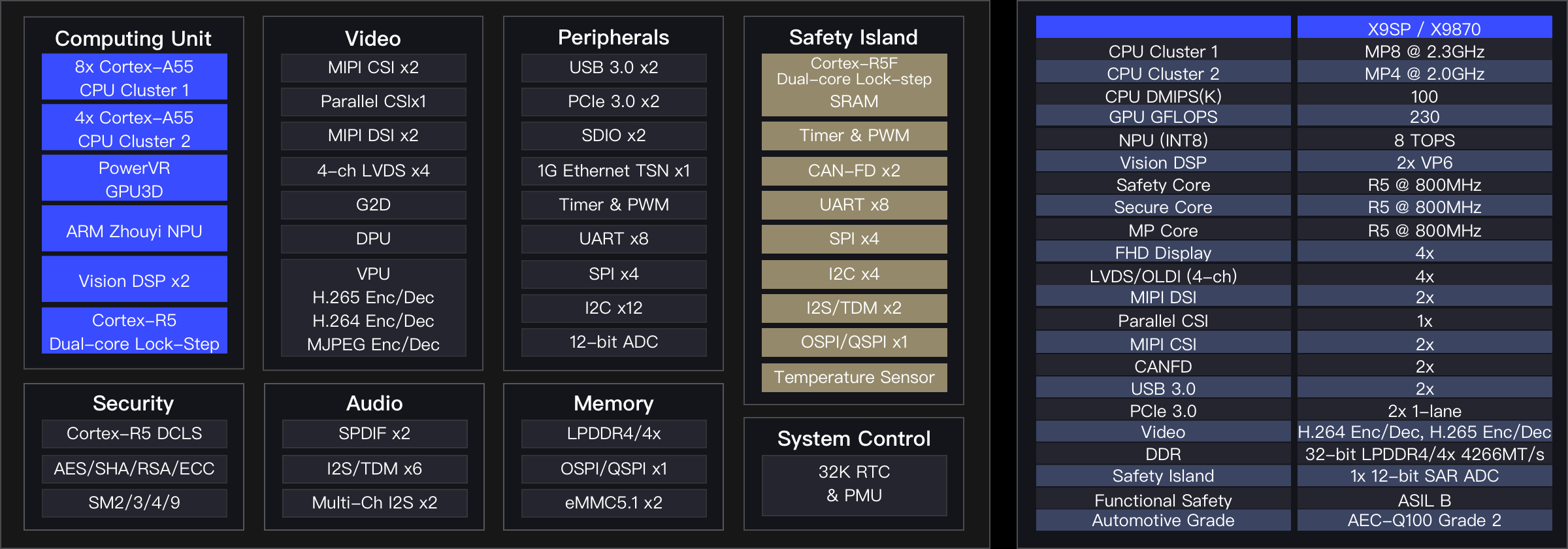

Specification
Applications
By virtue of the true hardware-isolated architecture and hardware virtualization technology of X9SP, SemiDrive provides a single-chip solution for e-cockpit domain controller.
Solution Features:
- Supports the deployment of systems such as virtual cluster and infotainment system on a single chip to meet the functional safety demands of different levels in multiple domains.
- Built-in AI accelerator engine to empower the deployment and acceleration of voice function, and DMS/OMS;
- Built-in high-performance NPU and automotive ISP to enable the deployment of parking algorithms.
- With a high-performance GPU and VPU, as well as a diverse range of video input and output interfaces, supports rendering of 3D HMI, display of 4 screens with high definition and high frame rate and interaction among multiple screens; Supports 2.5K@60Hz; Provides a secure display channel.
- Equipped with a rich number of highly secure R5 cores to facilitate the integration of DVR and fast AVM;
Software
ToolsCompilation Toolchain
SDTOOL: A toolkit related to host computer side of SemiDrive platform product, including drivers, download tools, Fuse tools, configuration tools, etc.
SDNN Tool: SemiDrive AI compiler framework
SD Docker Tool
Source CodeLinux kernel
Android
Yocto5
MCAL
SSDK：FreeRTOS
LK
MirrorBootloaders
QT6.5 for Linux cluster
Android14
Security SoftwareHardware
No.
Material Name
Material Description
Unit
Quantity
1
X9SP core board
Development main board
pcs
1
2
Base plate of X9SP core board
Development base plate
pcs
1
3
DB5011 daughter card
Driver board for 12.3-in screen
pcs
2
4
DB5015 daughter cardDB5015 daughter card
Driver board for 15.1-in screen
pcs
1
5
12.3-in display screen
For video display (with FPC ribbon cable)
Set
2
6
15.1-in display screen
For video display (with FPC ribbon cable)
Set
1
7
12V adapter
For power supply to the development board
Pcs
1
8
One-to-one coax dual-port to dual-core port harness
For connection to the dedicated Serdes interface of the 15.1-in screen's daughter card
Pcs
1
9
One-to-two coax dual-port to dual-head harness
For connection to the dedicated Serdes interface of the screen's daughter card
Pcs
2
10
USB harness Type-A to Micro USB
board's debugging and printing function
Pcs
2
11
Loudspeaker
PHILIPS SPA510 loudspeaker
Pcs
1
12
Lotus-headed loudspeaker adapter cable
UGREEN red-white to female audio adapter cable
Pcs
1
13
40X60cm electrostatic bag
For dust prevention of screen
Pcs
2
14
25X40cm electrostatic bag
For dust prevention of screen/main board
Pcs
2
15
Acrylic protective plate
For protection of devices on the main board/display screen
Set
1
16
Interior and exterior packaging
Inner lining foam and packaging carton
Set
1
