Automotive Microcontroller Unit (MCU) - E34 Series
The E34 series belongs to SemiDrive's high-security and high-reliability MCU product lineup, which offers stronger performance and targets at application fields such as advanced driver assistance systems, BMS, and liDAR.
This series of MCUs is configured with 4 independent ARM Cortex R5F cores, with afrequency of 600MHz, and can be configured into (2+2) or (3+1) lock-step mode;
In addition, there is an independent information security core with a maximum frequency of up to 200MHz.
The E34 series provides 2M-3M RAM, and is equipped with ECC protection and abundant I/O resources.
This product meets the information security requirements of Full EVITA level and supports information security firmware that complies with the ISO 21434 standard.
SemiDrive provides functional safety software libraries, FMEDA, and various functional safety documents to help achieve functional safety applications at the highest ASIL-D level.
The E34 series has obtained Grade 1 certification of AEC-Q100, with a junction temperature (Tj) range of -40℃ to 150℃.
Product Manual
Advantages
Excellent Reliability and Safety
- Delivers ASIL-D level functional safety support.
- Meets the information security requirements of Evita Full level; Enables hardware acceleration of State Cryptgraphy algorithms SM2/3/4/9.
- Grade 1 certification of AEC-Q100, with a junction temperature (Tj) range of -40℃ to 150℃.
- Fitted with a hardware watchdog, clock/power/temperature monitoring modules.
Complete Software and Ecological Support
- Provides functional safety software libraries, FMEDA, and various functional safety documents.
- SemiDrive's self-developed MCAL for functional safety development process.
- Automotive SSDK software package for introduction to mass production.
- SemiDrive's self-developed basic version of information security firmware for secure boot.
- Collaborate with numerous ecosystem partners
High Performance, High Connectivity and Flexible Configuration
- Fitted with 4 independent ARM Cortex R5 cores, with a frequency of 600MHz.
- Available for (2+2) or (3+1) lock-step mode to meet the integration demands of functional safety applications at different levels.
- Provides 2M/3M RAM with ECC protection.
- Packaged in accordance with BGA324.
- Fitted with dual gigabit Ethernet ports, and a large number of interfaces including CANFD, USB, FlexRay, SDIO/eMMC, I2S, LIN/UART, SPI, and I2C.
Applications
LiDAR
BMS
PBOX

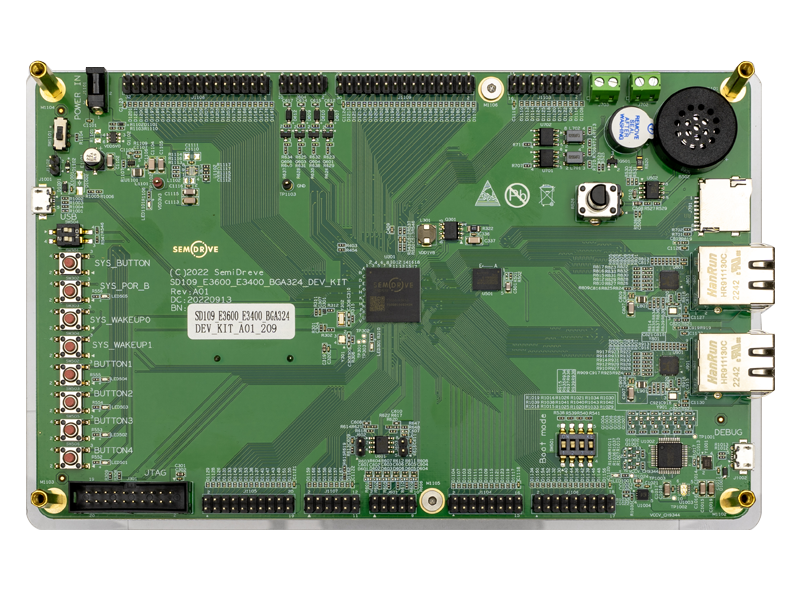

Advanced Driver Assistance System (ADAS)Hardware
E34 series including E3420/E3430 Mature reference designs are available
